WHY the ISUZU ELF 250 1991 TIPPER

with the 4BE1 diesel motor

THE ISUZU ELF 250 1991 TIPPER

Isuzu dealers like Robertson Isuzu in Palmerston North are excellent.

Ask for parts dept & speak to Chris Beamont. Many parts they can get from Japan

and it takes about 3 weeks to NZ as at April 2024.

Isuzu Elf 250 Truck Oil filters: @ Jan 2010

Oil Filter Bypass Sakura Z155x Equiv = $15.90

Oil filter Sakura Z333X = $9.52

A 4BE1 with 135kW ? Wish I had one of those.

A comparison of the 4BD1, 4BE1, 4BD1T is as follows

Model ----kW ---@rpm ---Nm @rpm--- litres
Isuzu 4BD1 ----66 3200 ----245 1900 ----3900
Isuzu 4BE1 ----74 3500---- 242 2000---- 3600
Isuzu 4BD1T ----90 3200 ----314 2200--- 3900

The 4BE1 was found in the NKR Models (150,200,250,300 & 400) & the Isuzu Elf above.

http://www.partstw.com/Isuzu/isuzu.htm

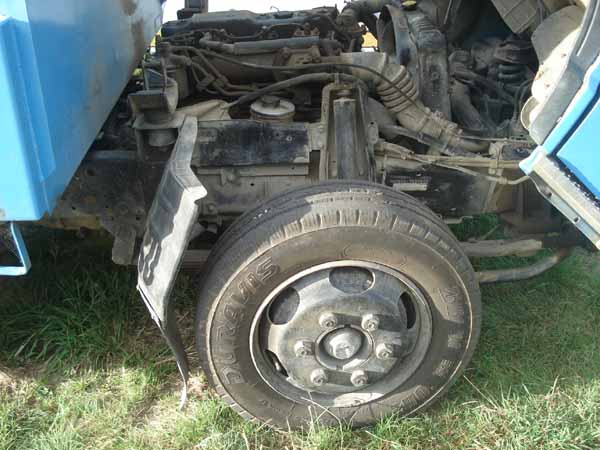

Isuzu 4BE1 on the Elf is really easy to work on and accessible from the Cab lift.

Hydraulic filler on the drivers side for auto transmission oil

Then you have the Vin and chassis number on the drivers side easily seen.

The 2 oil filters easy to get to under the vehicle.

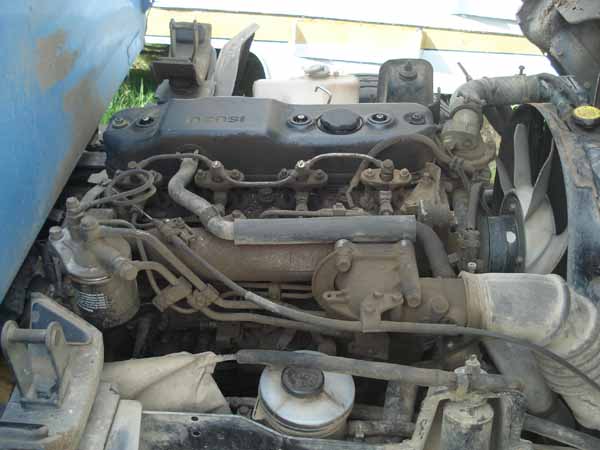

Isuzu 4BE1 on the Elf is really easy to work on and accessible from the Cab lift. Older trucks have problems with gunked up fuel tanks and lines so clean regularly

The Isuzu Elf like any other diesel powered truck does have a fuel problem. Normally tha gas tank will over time get sand etc and grit in the tank. This passes out of the tank and then runs via an inline filter and blocks the line causing your truck to run erratically then stop. The truck may start but again will stall. Your problem will be a clogged up filter in this line. The older the truck the more frequently you need to clean the inline filter.

What to do? You will see the plastic transmission fluid holder at the bottom mid section. If you need to bleed the fuel line then unscrew the plunger and press up and down. If it doesn't come up straight away then your filter is clogged up as fuel cannot get to the plunger. Just to the right of this and lower down you will see the fuel line. You will need a 17mm socket to undo this line and inside you will see the filter. Clean it as gunk will be there and if so wait a month then do it again.

If you need to bleed the system then you will see the small 10mm bleeder above the plunger so undo then depress the plunger until all the air comes out then tighten the bleeder up again.

Change the Fuel filter--thats the black filter 1/2 way up on the left side and theyre around $24 at Repco in NZ.

More Hand brake drum [ ISUZU ELF MOTOR ]

Remember some things are cheaper to buy if you know where to look

"After all these years when will the costs of things slow down in NZ "
