MINI EXCAVATOR KOBELCO SS 60

the worlds smallest excavator

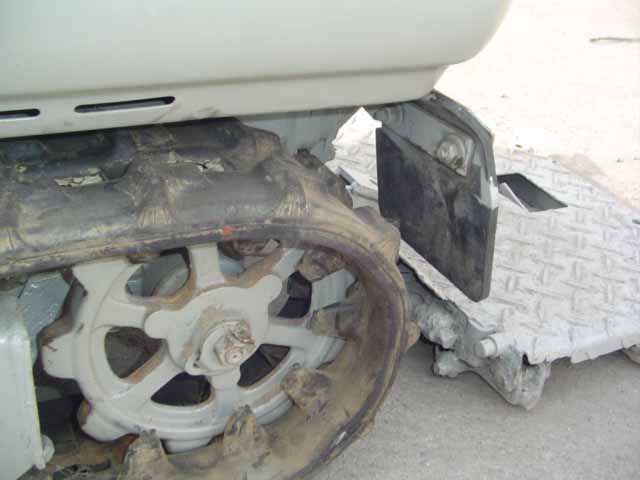

WHAT TO CHECK FOR IF NO NUMBERS: Rubber tracks metal drive pins. What you have to do to determine the "pitch" is measure the distance between two drive pins centre to centre between each pin.For example 75.5mm Width of the track and links.

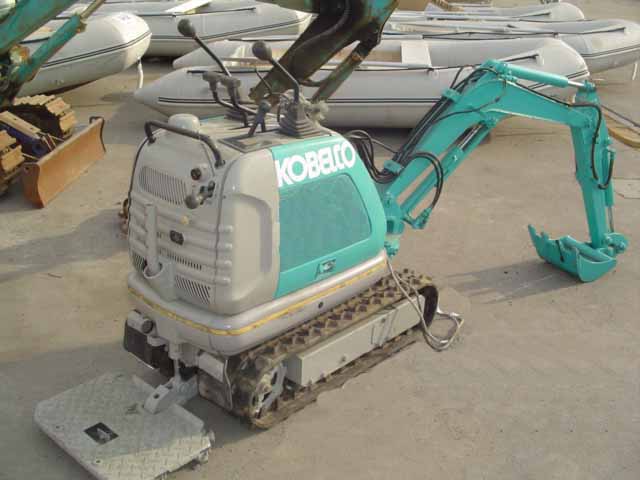

KOBELCO MINI PS- 02 or SS60 EXCAVATOR TRACKS
Kobelco. The tracks are Bridgestone
Kobelco with No: QP 103321-00-10 and it has 29 links.
13cm wide tracks, Centres 7.2cm

Kobelco SS60 os the smallest excavator ever made

It is just 19" wide, weighs 600 lbs, has rubber tracks 5 1/2" wide, with a bike seat and stand on platform.3.5 hp petrol engine air cooled. Operating Weight:0.27mt Bucket capacity: 0.25cft

The SS 60 Super shovel is the smallest earthmoving machine in the world and has an
overall width of 19 inches (0.48 m) and weighs only 600 lbs (272 kg). The operator rides behind the
excavator and balances the action of the bucket. The operator can sit or stand
on a platform while operating the machine. The bicycle seat can be folded up
when the platform is in use. The platform can be lowered two-inches (51 mm) below ground level to act as an anchor and stabilize the machine. The excavator does not have a blade; all work is done
with the bucket.
The machine is not equipped with ROP/FOP or a restraint system. In case of a roll-over, the operator
steps off the machine. The machine is operated entirely with levers. Two levers control the boom and bucket; another two levers provide directional control of the tracks, and two other levers are used to shift from high to low travel speeds and raising and lowering the platform.
The SS 60 Super Shovel can be transported on a small pickup truck, trailer & has lifting eyes to onload or offload. Mobility drive is limited by its maximum speed of 0.87 mph (1.4 kph). The tracks and low ground pressure provide good traction and this machine is ideal for hard to get at places like backyards, under houses etc. This one we have is fitted with lights for working in basements or repiling homes. The rubber tracks minimize damage to finished surfaces such as grass or concrete .

General:
Overall Length: 7'1'' Overall Width: 1'7'' Height: 3'7'' Bucket capacity: 0.25 cu ft
Bucket width: 9 inches Fuel Tank: 2.2 US gal
Performance
Travel Speed: 0.87 high, 0.50 low 2.6 mph
Boom swing speed: 3.7 sec (90°)
Gradeability: 47% (25°)
Stick digging force 1830 lb.
Bucket digging force 750 lb.
Operating weight: 600 lb.
Motor: 4-cycle, air-cooled gasoline engine

Rated output: (HP @ rpm) 3.5 @ 1600
Displacement 53.6 cu. in.
Hydraulic System
Pumps: 2 gear pumps
Max. discharge pressure: 2,130 psi
Hydraulic tank capacity: 1.85 US gal
