CAT 312 EXCAVATOR is THE BEST EXCAVATORS FOR FARMERS ESP WITH QUICK HITCH & WIDE TRENCHING BUCKETS FOR DRAINAGE AND FARM WORK.









For farmers in NZ the CAT 312 BL is a strong 13 tonne excavator and the best choice for the work of drains, swamps and lake clearing on the farm. The smaller 312B does not have a greater track wheelbase and long stick as the BL models which are a lot stronger but are also an ideal farm machine. But they were popular and still are in NZ. They are easy to use and comfortable with air condition, heater and lights & sound etc. They do use diesel around 4-5 gallons per hour but there is a warning buzzer that indicates when youre running low on gas to let you know. Overall they are the bext choice for medium size excavators and parts are easy to get via Goughs although not cheap?? Goughs told us they have never had a motor blow on these machines which is a good omen but like anything keep up the maintenance and they will serve you will.

The CAT 311 is also a good choice of excavators and very easy to use. They are nice inside and with the tilt bucket one can scrap the sizes of drains as well as banks etc and today the tilt bucket is a must for all kiwi farmers & is the best attachment to have rather than a non tilt bucket. Having the extyra piping allows you to use a grab bucket or grab rake

On top of that we are having made rakes and grab rakes for the clearing of forestry blocks so will keep you posted etc. There are many 312 A, B C D & now the newer E models in NZ



FUEL CONSUMPTION

Cat 320 for 7 hours average 6 gallons per hour consumption

Cat 311- 312 - 315 Excavator On full throttle uses about 4 gallons per hour depending on the work which is 30-35 gallons in 8 hours on the hour meter.

CL on a cat excavator? is a Model designator. The C is generally stands for the the 3rd generation of that particular model machine. The L usually designates that machine as having a longer (than normal) set of crawler tracks. An example would be Cat 320CL Excavator or the 312 BL

The 312B has a 3064 turbo diesel engine producing 84 flywheel HP (FWHP). It comes standard with a power and work mode selector including a new user mode, and very good operator seat and console with longer stick.













WHERE TO BUY PARTS IN NZ:

# Mufflers made Waitara: 06 8256351

# Doors & parts Lakeland:07 3470765   0274945886  info@heavy-machinery.co.nz

Lakeland Heavy Machinery 126-136 View Rd, P.O.Box 1976 Rotorua

# Excavator World Hokitika. : 483B Hau Hau Rd, Hokitika 7811. THIS COMPANY ARE THE BEST FOR SPROCKETS FOR 311 & 312 CAT Excavators as well as have full sets of tracks, chains and sprocket kits. They advertise on Trademe or direct here below.

Tel: 03-756 8020

http://www.excavatorworld.co.nz/dismantling.html

# After Market Parts & used CAT or Komatsu Parts try Machinery Specialists in Palmerston North as they import all the time & the owner is ex CAT specialist 18 Bisley St, Cloverlea, Palmerston North 4412 : Phone06-356 8459

https://machineryspecialists.co.nz/contact/

# Porter Group in Hamilton wreck many excavators as well. Tel: 07-849 3956

www.portergroup.co.nz

OVERSEAS PARTS:

http://www.vankeppelusedparts.com/dismantled.htm

ARE WRECKING: 2004 Cat 330cl



Caterpillar 312BL excavator

Technical specifications:

312B L

Production year model/type

1998-2002

Engine:

Caterpillar

Cil/Turbo/intercooler

3054T

Engine model:

4TI

Rated output: (Kw/Hp/Rpm)

66 /90 /1900

Maximum torque: (Nm/Rpm)

x

Displacement: (cm³)

3990

Fuel:

Diesel

Hydraulic system:

Capacity hydraulic tank: (Ltr)

98

Capacity hydraulic system: (Ltr)

162

Pump hydraulic flow capacity: (Ltr/min)

2 x 120

Auxilary flow capacity: (option) (Ltr/min)

x

Maximum working pressure: (bar)

299

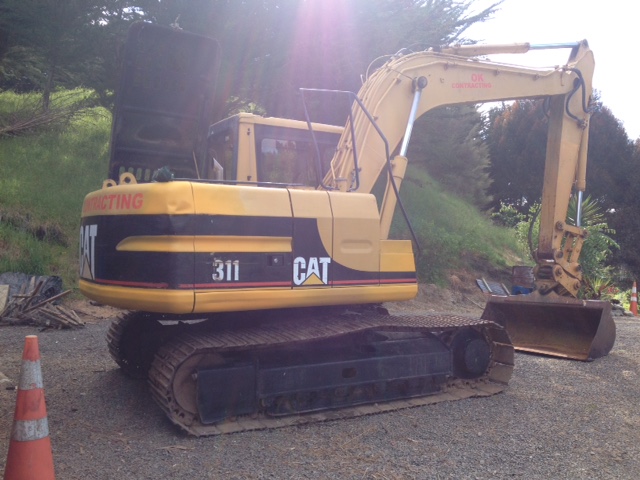

The 311 with swamp tracks





Dimensions & weight: (Monoboom)

Arm 2100mm

2500mm

3000mm

Operating weight: (Kg)

13270

13340

13418

Length transport with monoboom: (mm)

7610

7610

7630

Height cab: (mm)

2900

Height transport with monoboom: (mm)

2650

2655

2655

Body width: (mm)

2550

Track width standard: (mm)

500

Width over tracks: (tracks 500mm)

2490

Width over tracks: (tracks 600mm)

2590

Width dozer blade: (mm)

2490 (optional)

Track length on the ground: (mm)

3040

Gradebility: (%/°)

x

Ground pressure: (kg/cm²)

0,38

Fuel tank: (Ltr)

250

Operating information: (Monoboom)

Arm 2100mm

2500mm

3000mm

Max. reach at ground level: (mm)

7810

8190

8640

Max. loading height: (mm)

5830

6080

6310

Max. digging depth: (mm)

5150

5550

6050

Max. cutting height: (mm)

8270

8520

8750

Maximum travel speed:(Km/h low-high)

5.0










COBRA ATTACHMENTS is a new NZ company that sells & imports buckets and quick hitches. Check them out at www.cobraattach.co.nz or call 0800223553

We also have made in Thailand & China to your specs and can import CAT after market parts. We are having made rakes and grab rakes for these CAT 11 tonne and 12 tonne excavators.





When buying parts always quote your model and serial number as there are many variations. If you need parts etc for the 311 please ask us as we have a parts book and service manual for this model. A workshop manual can cost up to $850??? so not cheap but cheak:

www.catpublications.com you can buy a download



If you need help check the costs for a diagnosis as not cheap:

Goughs & Mobile Solutions can charge around $500NZ for an outcall and then once they return to do the work the bill rises so if you can do a lot yourself then better. Most cases ask for a quote first as its not cheap for the work and can cost 1000s. eg. go to www.heavymachineryforums.com

in USA and the guys are very helpful





We are preparing more pages to help farmers in NZ with maintenance & servicing etc.
