CATERILLAR D4-7U

FACTS AND SPECS OF THIS GREAT BULLDOZER

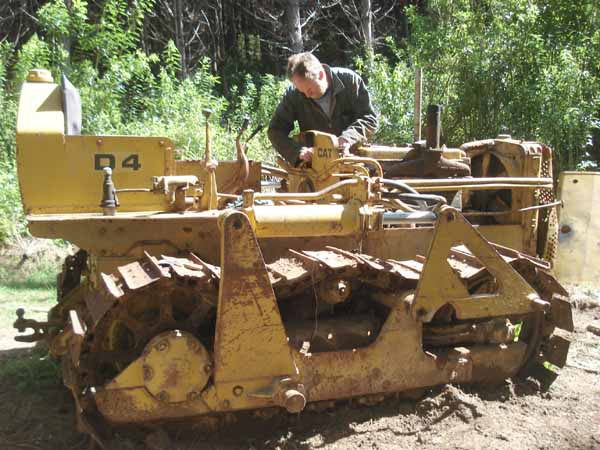

The D4 actually started around 1937 with a G4 Series then evolved into the 7U Series of the 1940s and 1950s. The Caterpillar Company continued to build new D4s right up till now and they are a great machine. The smaller D2 was a bit underpowered for the weight but the D4 was another machine and solid as. We had spark problems with the Pony motor but managed to start this machine after 3 years sitting in the bush in New Zealand. With a bit of ether the main motor started & runs fine just like new ready for its restoration on our farm. Check the fuel pressure on the guage at the front left of the motor and oil pressure guage both of which were fine on this model Cat D4-7U.



The Caterpillar D4 -JU Series

The tracks need attention but we will take a link out of this side as adjusting has reached near the max. To do this we will gas axe on of the links out. Other side is fine & the rollers OK as well as the sprockets. One of the good things about these Cats they are solid and even the oil nipples were easy to fill bar 1 which is excellent for the age of this machine 1951. 56D.



D4. 7U. 1947 7U1-7U1797 D4. 7U. 1948 7U1798-7U4257
D4. 7U. 1949 7U4258-7U8027 D4. 7U. 1950 7U8028-7U11887
D4. 7U. 1951 7U11888-7U16008 D4. 7U. 1952 7U16009-7U20836
D4. 7U. 1953 7U20837-7U26193 D4. 7U. 1954 7U26194-7U30583
D4. 7U. 1955 7U30584-7U35569 D4. 7U. 1956 7U35570-7U39596
D4. 7U. 1957 7U39597-7U42012 D4. 7U. 1958 7U42013-7U42725
     D4. 7U. 1959 7U42726-

Caterpillar D4 Bulldozer







If you wish to share any CatD4-7U info please send us email. We are happy to add information for you on our website especially parts comments, problems, pics of your machines ---etc & we can list your parts for sale or wanted to buy on our website [ D4-7U bulldozer Forum ad ]

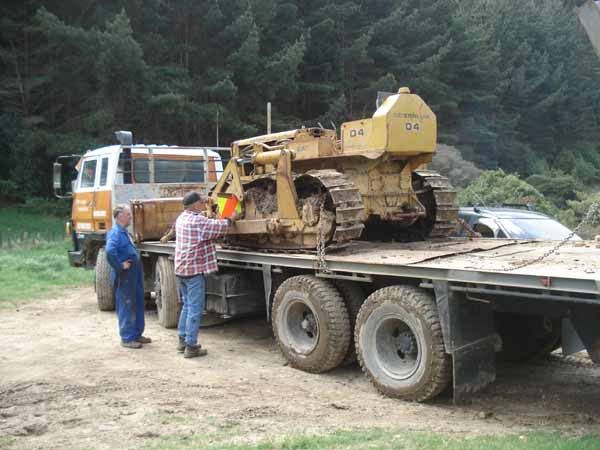

Ready to head out of the bush in NZ to its new home in the Horowhenua-Levin. We are going to install an electric start on the pony motor so check with us as we may be able to help others do conversions on there Cat's

Remember when loading on your truck in NZ this CatD4 blade is approx 4m wide & the limit on the Class 2 road in NZ is 4.1m without using a pilot vehicle. However we put the blade on a tilt which overcomes this problems for removal.

WE ARE ALWAYS INTERESTED IN BUYING USED CAT D4-7U PARTS ANYWHERE IN NZ.

JUST EMAIL US

More More [ D4-7U pony motor & add Honda starter ] [ D4-7U work on steering clutches 2 3 4 5 6 7 8 9 10 11 12 13 14 ] [ D4-7U bulldozer latest Oct 2010 pics ] [ D4-7U bulldozer pics ] [ D4-7U bulldozer pony motor ] [ D4-7U bulldozer Birtley blade ] [ D4-7U bulldozer USA parts ] [ NZ suppliers of CAT & Komatsu parts ]

We are also suppliers of NEW Komatsu spare parts for PCs up to 4 tonne as well looking for agents to buy our [ retread truck and bus tyres ]. RUBBER EXCAVATOR TRACKS FOR SALE all models : [ RUBBER TRACKS ] [ Kiwi bulldozer parts links ]
